Description

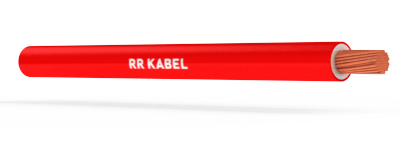

India’s 1st REACH and RoHS Compliant Cable | Heat Resistant and Flame Retardant Cable.
Application
Suitable for wiring in all types of residential and commercial infrastructure, where fire and electrical safety is utmost important.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Voltage Grade: Up to and including 1100V
Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The strands are twisted with high precision to impart circularity for the conductor.
Insulation: Specially formulated heat resistant & flame retardant PVC insulation is used. The HR FR property retards the propagation of flame without compromising safety.
Insulation Conformity: IS 5831, Type C – HR 85°C + FR
Colours: Red, yellow, blue, black, green, grey & white
Marking: The cables are printed with marking of ‘GUARDEX HR FR’ upto 4 Sq. mm & “RR KABEL HR FR” for size 6 Sq. mm and onwards
Packing: 90 mtr. coil is packed in protective cartons. Project packing of 180 mtr. & 200 mtr. also available.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.
